Furuno FAR2xx8 Radar
Advanced technologies for navigational safety
The FAR-22x8/23x8 series is designed to provide clearer and more accurate Radar images of the surroundings, while increasing reliability and decreasing overall cost of ownership with easy maintenance.
Signals are safely transported though the Ethernet network between the antenna and below deck processing unit, allowing for higher reliability. High quality images are obtained by the signal processor inside the antenna unit, directly converting analog to digital signals before sending them to the main processor unit.

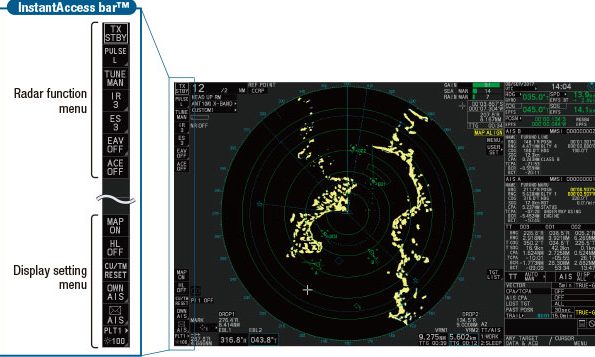

InstantAccess bar™ for quick access to your frequently used functions

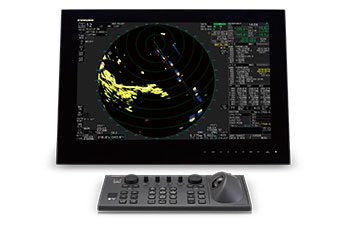

Well-designed controllers for stress-free operation InstantAccess bar™ Radar function menu Display setting menu Screen image: Wide monitor MU-270W Exceptionally intuitive user interface InstantAccess bar™ contains shortcut menus for frequently used functions and actions, allowing for quick access to essential tasks.

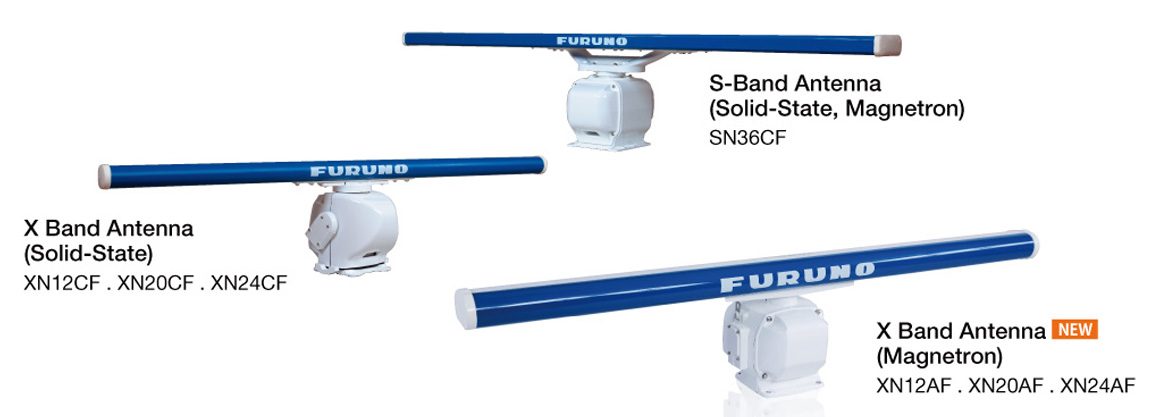

The new antenna's refined shape significantly reduces aerodynamic drag and lightens the burden on the gear box.The gear box itself has also been redesigned. Decreased aerodynamic drag and a DC brushless motor result in a very durable gear box that can be used for a prolonged period of time.
Installation and maintenance are now easier than ever. All components of the gear box are integrated into one block that can easily be removed from the gear box when maintenance is required. The cable to the gear box can be connected from the side of the gear box.
Options

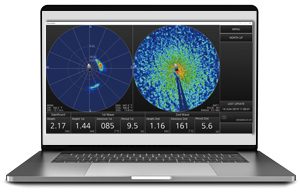

Wave Analyser
Wave Analyzer Software provides real-time measurement of wave height, direction and period by analysing sea surface echoes received from the marine radar. The wave information ensures safety at sea, even at night.

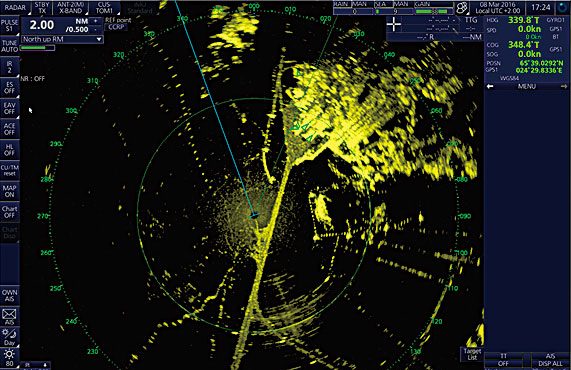

Ice Mode
ICE mode visualizes ice structures and find the best route through iced sea surface. Finding the optimum route to go through ice, the vessel consumes much less power and saves fuel and time.

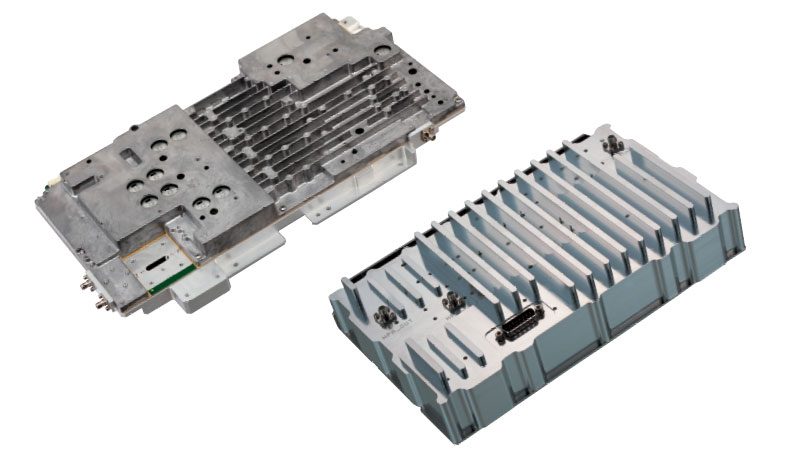

Solid State Radar Models
Compared to the traditional Magnetron Radar, the Solid State Radar NXT Series provide highly reliable target detection while requiring low power.
- No need to replace the magnetron
- Removal of the consumable parts thanks to a fan-less antenna (S-band only)
